XH M+Bucket 220 Bolt on Hooks

Allows tipping at a higher level

Increases loading height by 2,2m
Allows tipping at a higher level
Well suited for front loaders

Hook type:

BoH Euro

Width (cm):

160 180 200 220 240 260

In stock

SKU

11252660Q

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product details

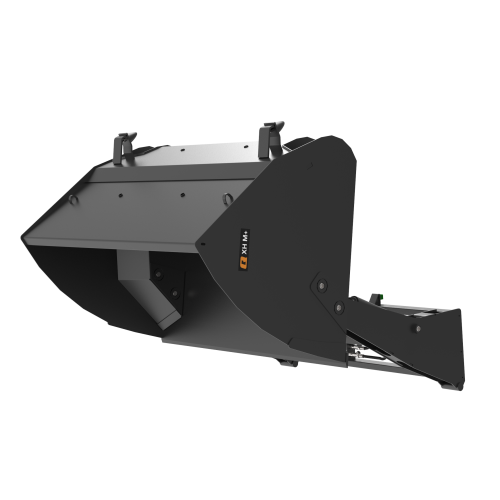

The XH M+ high tip bucket increase the bucket dump height with 2,2 meters compared to a conventional bucket.

This is to allow e.g. trailers with high sides to be loaded with front loaders and compact wheel loaders.

Available widths and dimensions of the XH M+ bucket is designed with such material handlers in mind.

Use the XH M+ bucket to load low density materials such as grains, grass seed or wood chips.

XH M+ bucket body is hinged in box sections located at the sides. These strong box sections have sloped surfaces to facilitate complete filling and emptying of the bucket.

A sturdy frame with dual cylinders is connected to the bucket, providing best possible combination of lifting force and fast cycle time.

On top of the back frame, rubber dampers are mounted and function both as end position shock absorber and aid in providing a quieter working environment.

Also, heavy duty stops are located between the bucket and the frame to absorb the impact force when filling the bucket.

The high tip bucket range is available with 40x80 Bolt on Hooks which opens for use on all common AG material handlers in this size segment. Model 200 – 260 comes also with welded Euro attachment for simple connection to front loaders.

Technical specifications

More Information
Weight	591 kg
Width	222 cm
Depth	151 cm
Height	108 cm
SizeModel	220
Hydraulic Pressure, max	200
Working depth	118 cm
Volume, struck	1.6 m³
Volume, heaped	2 m³
Working width	222 cm
Cutting Edge Dim (WxT)	180x16mm
Cutting Edge Hardness	500 HB
Height, max	223 m³
Number of Cylinders	2
