Topgrip 120 Bolt on Hooks

Topgrip proposes a unique way of handling round or square bales

For round and square bales
No sharp edges, perfect for plastic bales
For re-handling bales that are stacked closely together

Hook type:

BoH Euro

Width (cm):

120

Low availability

SKU

11253350Q

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product details

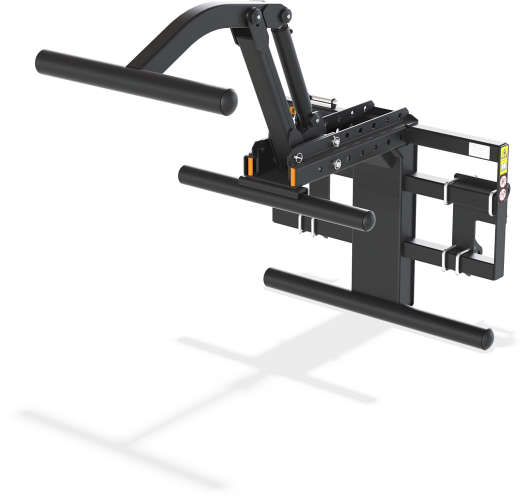

Topgrip proposes a unique way of handling round or square bales. The arm extends over the bale and clamps the bale towards the back frame to pull the bale away from the stack.

Technical specifications

More Information
Weight	237 kg
Width	130 cm
Depth	156 cm
Height	119 cm
SizeModel	120
Hydraulic Pressure, max	210
Working depth	135 cm
Working width	130 cm
Height, max	170 m³
Opening, max	74 cm
Number of Cylinders	1
Bale Size, min	100 cm
Bale Size, max	150 cm

Select Your Configuration

1. Implement

Topgrip 120 Bolt on Hooks

Low availability

SKU: 11253350Q

2. Select Bolt on Hook View Hook Guide

Start by selecting tool carrier to get the right options:

BoH 80x80 A-Frame A

Bolt on hook for implements with 80x80 interface.

Low availability

SKU: 11256216A

BoH 80x80 Alo Type 3 A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11254509A

BoH 80x80 Atlas 65 - 26°

Bolt on hook for implements with 80x80 interface.

Low availability

SKU: 11256500A

BoH 80x80 Atlas 95 -15°

Bolt on hook for implements with 80x80 interface.

Low availability

SKU: 11256380A

BoH 80x80 Bobcat/FDI/MF A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255102A

BoH 80x80 CNH LM A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11255100A

BoH 80x80 Claas/Kramer/Liebherr A

Bolted hook for implements with 80x80 interface.

Fits Claas Scorpion, Kramer KT, Liebherr and Weidemann Telehandlers.

Low availability

SKU: 11253575A

BoH 80x80 Dieci Large A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255242A

BoH 80x80 Dieci Medium A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255236A

BoH 80x80 Dieci Small A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255237A

BoH 80x80 Dieci XL

Bolt on hook for implements with 80x80 interface.

Low availability

SKU: 11256848A

BoH 80x80 Euro A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11254377A

BoH 80x80 Faucheux White A

Bolt on hook for implements with 80x80 interface.

Low availability

SKU: 11256197A

BoH 80x80 Hauer A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255143A

BoH 80x80 JCB Mini TH (Light weight) -11256770A

Bolt on hook for implements with 80x80 interface. Recommended for JCB Loadall 514-40 Telehandler.

Low availability

SKU: 11256770A

BoH 80x80 JCB Q-fit A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11253571A

BoH 80x80 JLG/Deutz Fahr A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255240A

BoH 80x80 Knikmops 180-250

Bolt on hook for implements with 80x80 interface.

Recommended for Knikmops model 180 - 250.

Low availability

SKU: 11256859A

BoH 80x80 Kramer High A

Bolted hook for implements with 80x80 interface. Kramer High is used on machine types: 8115, KL43.8. For older machines the same tool carrier is used on: 412 / 416 / 512 / 516 / 612SL / 616 / 620 / 621 / 680(343-01) / 712SL / 720 / 721 (T) / 780 (T) / 1150/ KL43.

Low availability

SKU: 11255415A

BoH 80x80 Kramer Short A

Bolted hook for implements with 80x80 interface. Kramer Short is used on machine types: 2706 / 5055 / 5065 / 5075-5095 / 8085-8105 (including the T-models). KL 19.5 / KL25.5 / KL31.5-KL37.5 / KL35.8-KL37.8 / KL25.5T / KL30.5T / KL30.8T / KL 35.8T / KT276. For older machines the same tool carrier is used on: 2506 / 212 / 220 / 312 / 316 / 318 / 320 / 380 / 418 / 421 / 480 / 521 / 550 / 580 (T) / 650 / 680 (T) new / 750 (T) / 850, 950 and 8075 KL32 / KL35 / KL37 / KL 43 / KL27T / and KL35T / KT256.

Low availability

SKU: 11255368A

BoH 80x80 MX A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11253971A

BoH 80x80 Manitou MLT A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11253572A

BoH 80x80 Merlo ZM2 A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11253573A

BoH 80x80 Merlo ZM3 1-pin A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255137A

BoH 80x80 Merlo ZM3 3-pin A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255138A

BoH 80x80 Pin and Cone A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11253574A

BoH 80x80 SMS A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11253940A

BoH 80x80 Schäffer Type KR A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255104A

BoH 80x80 Schäffer Type SWH A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255232A

BoH 80x80 Schäffer VM A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11256163A

BoH 80x80 Sennebogen/Fendt A

Bolted hook for implements with 80x80 interface.

BoH has two adjustable bolts intended to absorb forces and relieve the locking pin.

Low availability

SKU: 11256339A

BoH 80x80 Skid Steer A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11254498A

BoH 80x80 Skid Steer Narrow

Bolt on hook for implements with 80x80 interface. Compatible also with standard width Skid Steer tool carriers.

Low availability

SKU: 11256076A

BoH 80X80 Terex/Schaeff/Yanmar

Bolt on hook for implements with 80x80 interface.

In stock

SKU: 11256695A

BoH 80x80 Volvo BM Large A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11254149A

BoH 80x80 Volvo BM Small A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11255145A

BoH 80x80 Weidemann 50-50 A

Bolt on hook for implements with 80x80 interface. Note, BoH Weidemann 50-50 can in lowest position and full rollback give collision between loader Z-linkage and following Implements; Bale Fork L+ with Top beam mounted directly on frame. Top Grip when configured for smallest bale size. Silocut M+ 200 and 225 center cylinder.

Low availability

SKU: 11256226A

BoH 80x80 Weidemann A

Bolted hook for implements with 80x80 interface.

In stock

SKU: 11255106A

BoH 80x80 Zettelmeyer 402 A

Bolted hook for implements with 80x80 interface.

Low availability

SKU: 11255139A

BoH 80x80 Zettelmeyer 602 - JCB A

Bolted hook for implements with 80x80 interface. Suitable for JCB 409 Loader. Older Z-link JCB loaders should use Zettelmeyer 602 - Standard.

Low availability

SKU: 11255498A

BoH 80x80 Zettelmeyer 602 -26deg - Standard A

Bolted hook for implements with 80x80 interface. Suitable for Volvo, Case, CAT and NH loaders.

Low availability

SKU: 11255500A

BoH 80x80 Zettelmeyer 602 -26deg - Claas A

Bolt on hook for implements with 80x80 interface. Suitable for Claas loaders.

Low availability

SKU: 11256254A

3. Select Accessories

Hose connection

Selectofix

3rd function Selectofix for implements. Does not include hoses.

In stock

SKU: 10550180

Pressure relief valve

Pressure relief valve (200 bar)

Needed when supplied hydraulic pressure exceeds 200 bar.

In stock

SKU: 60010270

Load hold & press. relief valve Uni-Topg. & Flexi. (200 bar)

Needed when supplied hydraulic pressure exceeds 200 bar. Also combined with load holding function for safety.

In stock

SKU: 60040810
