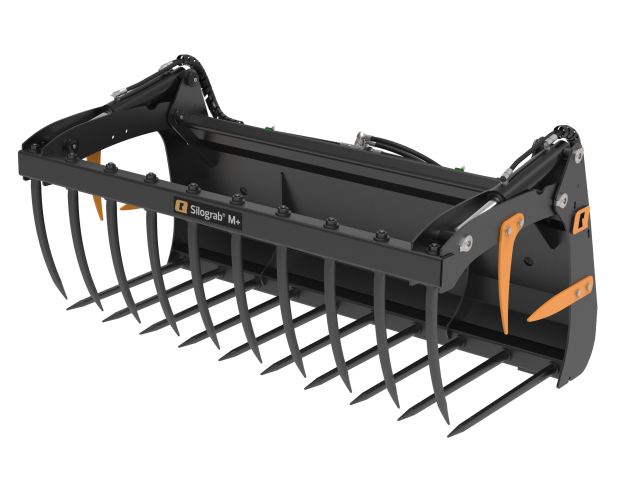

Silograb M+ 210 Euro
A highly versatile Fork grab for Front loaders, Compact wheel loaders and up to mid-size Telehandlers.
Implement perfect for Silage and manure handling.
Size and dimensions are ideal for use with front end loaders, and compact wheel loaders.
Available with M16 L BoHs allowing this Implement to be used by many material handlers.
Low availability
SKU
11255968Q
Silograb M+ is the next generation of Silograb now available for a much larger variety of material handlers thanks to the M16 BoH system. Working angles are fine tuned for most types of material handlers which allows you to use the full capacity of your Silograb M+. The most popular features of the previous Silograb remains such as the strong and durable Q-tines mounted in box sections with welded sleeved. The curved Q-tines in the grab head make a circular motion through the material, which produces the cleanest cut, the least power requirement and the longest service life for the tines. In addition, the material is pressed against the back of the implement when the tines are lowered, keeping the silage in place even when driving over uneven terrain.
| Weight | 390 kg |
|---|---|
| Width | 213 cm |
| Depth | 110 cm |
| Height | 93 cm |
| SizeModel | 210 |
| Tine dimension | Back Conus 1. Grab Conus 1 |
| Number of Tines | 11 |
| Hydraulic Pressure, max | 210 |
| Working depth | 88 cm |
| Working width | 203 cm |
| Volume | 1.07 m³ |
| Height, max | 146 m³ |
| Opening, max | 119 cm |
| Tine spacing | 20 |
| Tine spacing, grab | 20 |
| Number of Cylinders | 2 |
| Number of Tines, grab | 11 |
1. Implement
2. Select Accessories
Teeth protection
Hose connection
Pressure relief valve
3. Select Assembly
Assembly accessories
