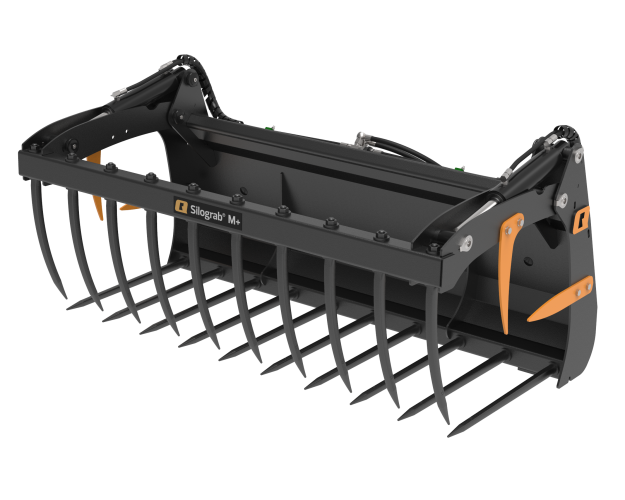

Silograb M+ 150 Bolt on Hooks

A highly versatile Fork grab for Front loaders, Compact wheel loaders and up to mid-size Telehandlers.

Implement perfect for Silage and manure handling.
Size and dimensions are ideal for use with front end loaders, and compact wheel loaders.
Available with M16 L BoHs allowing this Implement to be used by many material handlers.

Hook type:

BoH Euro

Width (cm):

130 150 170 190 210 230 250

SKU

11255908Q

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product details

Silograb M+ is the next generation of Silograb now available for a much larger variety of material handlers thanks to the M16 BoH system. Working angles are fine tuned for most types of material handlers which allows you to use the full capacity of your Silograb M+. The most popular features of the previous Silograb remains such as the strong and durable Q-tines mounted in box sections with welded sleeved. The curved Q-tines in the grab head make a circular motion through the material, which produces the cleanest cut, the least power requirement and the longest service life for the tines. In addition, the material is pressed against the back of the implement when the tines are lowered, keeping the silage in place even when driving over uneven terrain.

Technical specifications

More Information
Weight	312 kg
Width	153 cm
Depth	107 cm
Height	93 cm
SizeModel	150
Tine dimension	Back Conus 1. Grab Conus 1
Number of Tines	8
Hydraulic Pressure, max	210
Working depth	88 cm
Working width	143 cm
Volume	0.76 m³
Height, max	146 m³
Opening, max	119 cm
Tine spacing	20
Tine spacing, grab	20 cm
Number of Cylinders	2
Number of Tines, grab	8

Select Your Configuration

1. Implement

Silograb M+ 150 Bolt on Hooks

In stock

SKU: 11255908Q

2. Select Bolt on Hook View Hook Guide

Start by selecting tool carrier to get the right options:

BoH M16 L A-Frame

Bolt on hook for implements with M16 interface.

In stock

SKU: 11256217Q

BoH M16 L Alo Type 3

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255624Q

BoH M16 L Atlas 35 - 15°

Bolt on hook for implements with M16 interface. SM+ bucket only compatible with Atlas 380, NOT Atlas 320

In stock

SKU: 11256502Q

BoH M16 L Atlas 65 - 29°

Bolt on hook for implements with M16 interface. Telescopic loader AR480 T

Low availability

SKU: 11256505Q

BoH M16 L Bobcat/FDI/MF

Bolted hook for implements with M16 interface.

Recommended for buckets and grabs as Multibenne M+ and Silograb M+.

In stock

SKU: 11255632Q

BoH M16 L CAT TH

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255577Q

BoH M16 L CNH LM

Bolted hook for implements with M16 interface. Extended BoH that works with manual locking pin on hydraulic implements with cylinders on the back.

In stock

SKU: 11255607Q

BoH M16 L Claas Scorpion

Bolted hook for implements with M16 interface. Recommended for Buckets and Multibenne M+, Silograb M+ & Manure Fork M+ .

Low availability

SKU: 11255612Q

BoH M16 L Dieci Medium

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255628Q

BoH M16 L Dieci Small

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255629Q

BoH M16 L Euro

Bolted hook for implements with M16 interface.

In stock

SKU: 11255559Q

BoH M16 L Faucheux White

Bolt on hook for implements with M16 interface.

Low availability

SKU: 11256194Q

BoH M16 L Giant

Bolted hook for implements with M16 interface.

In stock

SKU: 11255585Q

BoH M16 L Hauer

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255631Q

BoH M16 L JCB Mini TH (Light weight)

Bolt on hook for implements with M16 interface. Recommended for JCB Loadall 514-40 Telehandler.

Low availability

SKU: 11256742Q

BoH M16 L JCB TC Compact

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255635Q

BoH M16 S Knikmops 120-140

Bolt on hook for implements with M16 interface.

Recommended for Knikmops model 120-140.

Low availability

SKU: 11256855Q

BoH M16 S Knikmops 180-250

Bolt on hook for implements with M16 interface.

Recommended for Knikmops model 180 - 250.

Low availability

SKU: 11256856Q

BoH M16 S Knikmops 80-100

Bolt on hook for implements with M16 interface.

Recommended for Knikmops model 80-100.

Low availability

SKU: 11256851Q

BoH M16 L Kramer Short

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255610Q

BoH M16 L MX

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255622Q

BoH M16 L Magni

Bolt on hook for implements with M16 interface. Compatible with manual locking rod and has bracket for RFID tag.

Low availability

SKU: 11256738Q

BoH M16 L Manitou 23°

Bolt on hook for implements with M16 interface.

Recommended for Bucket grabs for Manitou MLT telehandlers.

Recommended for buckets and Multibenne M+, Silograb M+ & Manure Fork M+ for Massey Ferguson & Bobcat telehandlers with Manitou tool carrier.

Low availability

SKU: 11256651Q

BoH M16 L Merlo ZM2

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255618Q

BoH M16 L Merlo ZM2S

Bolt on hook for implements with M16 interface. Note, Powergrab M+ and Multigrab M+ could have collisions with open grab head when crowded.

Low availability

SKU: 11256458Q

BoH M16 L Pin and Cone

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255630Q

BoH M16 L SMS

Bolted hook for implements with M16 interface.

In stock

SKU: 11255590Q

BoH M16 S SMS -9°

Bolt on hook for implements with M16 interface. Recommended for all Flexitrac loaders.

In stock

SKU: 11256667Q

BoH M16 L Schäffer Type SWH

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255588Q

BoH M16 L Skid Steer

Bolted hook for implements with M16 interface.

In stock

SKU: 11255620Q

BoH M16 S Skid Steer Narrow

Bolt on hook for implements with M16 interface. Compatible also with standard width Skid Steer tool carriers.

Low availability

SKU: 11256728Q

BoH M16 L Terex/Schaeff/Yanmar

Bolt on hook for implements with M16 interface.

May require repositioning of valve to right side on hydraulic implements.

In stock

SKU: 11256696Q

BoH M16 L Weidemann 50-50

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255587Q

BoH M16 L Weidemann

Bolted hook for implements with M16 interface.

In stock

SKU: 11255586Q

BoH M16 L Weidemann -27 deg

Bolted hook for implements with M16 interface. For wheel loaders with Z-linkage, recommended for model 3070 and 3080.

Low availability

SKU: 11255997Q

BoH M16 L Zettelmeyer 402

Bolted hook for implements with M16 interface.

Low availability

SKU: 11255616Q

BoH M16 L Zettelmeyer 602 - Schäffer VL1

Bolt on hook for implements with M16 interface. Suitable for Schäffer loaders.

Low availability

SKU: 11256156Q

3. Select Accessories

Teeth protection

Teeth Protection kit 120-200

Transport your Quicke Implement safely along the road. The teeth protection easily kit covers the pointy tip of the tines that makes your Quicke Imlement safe for rad transports. Compatible with Quicke Bale forks, Stone forks and Soil Buckets with teeth.

Low availability

SKU: 11256300Q

Hose connection

Selectofix

3rd function Selectofix for implements. Does not include hoses.

In stock

SKU: 10550180

Hose kit

Hose kit 1/2", 2x L=90cm, G1/2" - 1/2" ISO A (F)

Hose kit with 2 hoses. 1/2" hoses L 90cm. Coupling towards implement: 1/2" BSPP straight, Coupling towards loader: 1/2" ISO A Quick Coupling Female.

Low availability

SKU: 60016182

Hose kit 1/2", 2x L=75cm, G1/2"90C - 1/2" ISO A (F)

Hose kit with 2 hoses. 1/2" hoses L 75cm. Coupling towards implement: 1/2" BSPP, Coupling towards loader: 1/2" ISO A Quick Coupling Female.

In stock

SKU: 60016632

Hose kit 1/2", 2x L=75cm, G1/2"90C - M22x1,5 (F)

Universal hose kit with 2 hoses with M22 female thread allows you to assemble the coupling you need, e.g. MX Mach 2.

1/2" hoses L 75cm. Coupling towards implement: 1/2" BSPP, Coupling towards loader: M22x1,5 Female.

In stock

SKU: 60016633

Hose kit 1/2", 2x L=125cm, G1/2"90C - 1/2" ISO A (F)

Hose kit with 2 hoses. 1/2" hoses L 125cm. Coupling towards implement: 1/2" BSPP, Coupling towards loader: 1/2" ISO A Quick Coupling Female.

In stock

SKU: 60016634

Hose kit 1/2", 2x L=125cm, G1/2"90C - M22x1,5 (F)

Universal hose kit with 2 hoses with M22 female thread allows you to assemble the coupling you need, e.g. MX Mach 2.

1/2" hoses L 125cm. Coupling towards implement: 1/2" BSPP, Coupling towards loader: M22x1,5 Female.

In stock

SKU: 60016635

Hose kit 1/2", 2x L=140cm, G1/2" - 1/2" ISO A (F)

Hose kit with 2 hoses. 1/2" hoses L 140cm. Coupling towards implement: 1/2" BSPP straight, Coupling towards loader: 1/2" ISO A Quick Coupling Female.

In stock

SKU: 60030389

Load hold valve kit

Load hold valve grab implements

Load hold valve keeps the grab head in position after the 3rd service is deactivated. Required for handlers with open-center 3rd service valves.

In stock

SKU: 11256743Q

Pressure relief valve

Pressure relief valve (200 bar)

Needed when supplied hydraulic pressure exceeds 200 bar.

In stock

SKU: 60002029
