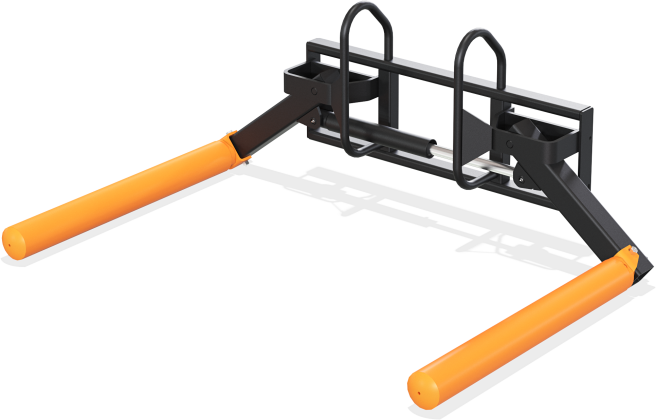

Flexibal 127 Roller Bolt on Hooks

Flexibal is a strong and very flexible implement

With small or larger diameter rollers
Doubles as a bale fork when rollers are removed
Minimising risk of damage

Hook type:

BoH Euro SMS

Width (cm):

89 127

SKU

11250760Q

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product details

Flexibal is a strong and very flexible implement. The arms are operated hydraulically, with the rollers rolling under the bale. The steel tubes roll under the bale without damaging it when it is being handled. The generous length and diameter of the tubes distribute the pressure evenly over the bale preventing damage to the plastic wrapping when being handled. The steel tubes are quickly and easily removed when transporting straw or hay bales. When the rollers are removed, Flexibal may also be used for moving pallets (max. 1,000 kg). Flexibal is offered with either 127mm or 89mm diameter removable rollers to suit our customer different requirements.

Technical specifications

More Information
Weight	154 kg
Width	205 cm
Depth	140 cm
Height	82 cm
SizeModel	127 Roller
Hydraulic Pressure, max	200
Working depth	115 cm
Opening, max	184 cm
Number of Cylinders	1
Width, max	197 cm
Bale Size, min	120 cm
Bale Size, max	180 cm

Select Your Configuration

1. Implement

Flexibal 127 Roller Bolt on Hooks

Low availability

SKU: 11250760Q

2. Select Bolt on Hook View Hook Guide

Start by selecting tool carrier to get the right options:

BoH 40x80 3-point linkage Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11254879Q

BoH 40x80 Euro/3PL combi

Bolt on hook for implements with 40x80 interface. Euro / 3-point linkage combi hook allows you to mount the implement both on the loader and on the tractors front- or rear linkage.

Low availability

SKU: 11255998Q

BoH 40x80 A-Frame Q

Bolt on hook for implements with 40x80 interface.

Low availability

SKU: 11256216Q

BoH 40x80 Alo Type 3 Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11254509Q

BoH 40x80 Atlas 35 - 19°

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256501Q

BoH 40x80 Atlas 65 - 8°

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256499Q

BoH 40x80 Atlas 95 -15°

Bolt on hook for implements with 40x80 interface.

Low availability

SKU: 11256380Q

BoH 40x80 Avant Q

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256182Q

BoH 40x80 Bobcat/FDI/MF Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255102Q

BoH 40x80 CAT TH Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255142Q

BoH 40x80 CNH LM Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255100Q

BoH 40x80 Claas/Kramer/Liebherr Q

Bolted hook for implements with 40x80 interface.

Fits Claas Scorpion, Kramer KT, Liebherr and Weidemann Telehandlers.

In stock

SKU: 11253575Q

BoH 40x80 Dieci Large Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255242Q

BoH 40x80 Dieci Medium Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255236Q

BoH 40x80 Dieci XL

Bolt on hook for implements with 40x80 interface.

Low availability

SKU: 11256848Q

BoH 40x80 Euro Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11254377Q

BoH 40x80 Faucheux White Q

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256197Q

BoH 40x80 Giant Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255328Q

BoH 40x80 Hauer Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255143Q

BoH 40x80 JCB Mini TH (Light weight)

Bolt on hook for implements with 40x80 interface. Recommended for JCB Loadall 514-40 Telehandler.

In stock

SKU: 11256770Q

BoH 40x80 JCB Q-fit Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11253571Q

BoH 40x80 JCB TC Compact Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255141Q

BoH 40x80 JCB TC Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11256274Q

BoH 40x80 JLG/Deutz Fahr Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255240Q

BoH 40x80 Knikmops 120-140

Bolt on hook for implements with 40x80 interface.

Recommended for Knikmops model 120-140.

Low availability

SKU: 11256853Q

BoH 40x80 Knikmops 80-100

Bolt on hook for implements with 40x80 interface.

BoH 40x80 Knikmops 80-100.

Low availability

SKU: 11256852Q

BoH 40x80 Kramer Compact Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11256068Q

BoH 40x80 Kramer High Q

Bolted hook for implements with 40x80 interface. Kramer High is used on machine types: 8115, KL43.8. For older machines the same tool carrier is used on: 412 / 416 / 512 / 516 / 612SL / 616 / 620 / 621 / 680(343-01) / 712SL / 720 / 721 (T) / 780 (T) / 1150/ KL43.

In stock

SKU: 11255415Q

BoH 40x80 Kramer Short Q

Bolted hook for implements 40x80 interface. Kramer Short is used on machine types: 2706 / 5055 / 5065 / 5075-5095 / 8085-8105 (including the T-models). KL 19.5 / KL25.5 / KL31.5-KL37.5 / KL35.8-KL37.8 / KL25.5T / KL30.5T / KL30.8T / KL 35.8T / KT276. For older machines the same tool carrier is used on: 2506 / 212 / 220 / 312 / 316 / 318 / 320 / 380 / 418 / 421 / 480 / 521 / 550 / 580 (T) / 650 / 680 (T) new / 750 (T) / 850, 950 and 8075 KL32 / KL35 / KL37 / KL 43 / KL27T / and KL35T / KT256.

In stock

SKU: 11255368Q

BoH 40x80 MX Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11253971Q

BoH 40x80 Manitou MLT Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11253572Q

BoH 40x80 Merlo ZM2 Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11253573Q

BoH 40x80 Merlo ZM2S

Bolt on hook for implements with 40x80 interface.

Low availability

SKU: 11256460Q

BoH 40x80 Merlo ZM3 1-pin Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255137Q

BoH 40x80 Merlo ZM3 3-pin Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255138Q

BoH 40x80 Pin and Cone Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11253574Q

BoH 40x80 SMS Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11253940Q

BoH 40x80 Schäffer HD Square Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255144Q

BoH 40x80 Schäffer Type KR Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255104Q

BoH 40x80 Schäffer Square 336 Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11255636Q

BoH 40x80 Schäffer Square 442 Q

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256269Q

BoH 40x80 Schäffer VM Q

Bolted hook for implements with 40x80 interface.

Low availability

SKU: 11256163Q

BoH 40x80 Sennebogen/Fendt Q

Bolted hook for implements with 40x80 interface.

BoH has two adjustable bolts intended to absorb forces and relieve the locking pin.

In stock

SKU: 11256339Q

BoH 40x80 Skid Steer Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11254498Q

BoH 40x80 Skid Steer Narrow

Bolt on hook for implements with 40x80 interface. Compatible also with standard width Skid Steer tool carriers.

Low availability

SKU: 11256076Q

BoH 40x80 Terex/Schaeff/Yanmar

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256695Q

BoH 40x80 Volvo BM Large Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11254149Q

BoH 40x80 Volvo BM Small Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255145Q

BoH 40x80 Weidemann 50-50 Q

Bolt on hook for implements with 40x80 interface.

In stock

SKU: 11256226Q

BoH 40x80 Weidemann MV Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11256113Q

BoH 40x80 Weidemann Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255106Q

BoH 40x80 Zettelmeyer 402 Q

Bolted hook for implements with 40x80 interface.

In stock

SKU: 11255139Q

BoH 40x80 Zettelmeyer 602 - Standard Q

Bolted hook for implements with 40x80 interface. Suitable for Volvo, Case and CAT loaders.

Low availability

SKU: 11255105Q

BoH 40x80 Zettelmeyer 602 - Standard Q

Bolted hook for implements with 40x80 interface. Suitable for Volvo, Case, CAT and NH loaders.

Low availability

SKU: 11255429Q

BoH 40x80 Zettelmeyer 602 - JCB Q

Bolted hook for implements with 40x80 interface. Suitable for JCB 409 Loader. Older Z-link JCB loaders should use Zettelmeyer 602 - Standard.

In stock

SKU: 11255498Q

BoH 40x80 Zettelmeyer 602 - Claas Q

Bolt on hook for implements with 40x80 interface. Suitable for Claas loaders.

In stock

SKU: 11256253Q

3. Select Accessories

Hose connection

Selectofix

3rd function Selectofix for implements. Does not include hoses.

In stock

SKU: 10550180

Adaptor BSP3/8 - JIC9/16

Inludes two 90 deg BSP3/8" female-JIC9/16"male.

Low availability

SKU: 60022070

Hose kit

Hose kit 3/8", 2x L=100cm, G3/8"90C - 1/2" ISO A (F)

Hose kit with 2 hoses. 3/8" hoses L 100cm. Coupling towards implement: 3/8" BSPP, Coupling towards loader: 1/2" ISO A Quick Coupling Female.

In stock

SKU: 10377308

Hose kit 1/2", 2x L=75cm, G3/8"90C - 1/2" ISO A (F)

Hose kit with 2 hoses. 1/2" hoses L 75cm. Coupling towards implement: 3/8" BSPP, Coupling towards loader: 1/2" ISO A Quick Coupling Female.

In stock

SKU: 60013335

Hose kit 1/2", 2x L=75cm, G3/8"90C - M22x1,5 (F)

Universal hose kit with 2 hoses with M22 female thread allows you to assemble the coupling you need, e.g. MX Mach 2.

1/2" hoses L 75cm. Coupling towards implement: 3/8" BSPP, Coupling towards loader: M22x1,5 Female.

In stock

SKU: 60013336

Hose kit 1/2", 2x L=125cm, G3/8"90C - M22x1,5 (F)

Universal hose kit with 2 hoses with M22 female thread allows you to assemble the coupling you need, e.g. MX Mach 2.

1/2" hoses L 125cm. Coupling towards implement: 3/8" BSPP, Coupling towards loader: M22x1,5 Female.

In stock

SKU: 60013338

Hose kit 3/8", 2x L=160cm, G3/8" - Multifaster Flat-face

Best choice for Avant yard loaders

Hose kit with 2 hoses. 3/8" hoses L 160cm. Coupling towards implement: 3/8" BSPP, Coupling towards loader: Multifaster Flat-face

Low availability

SKU: 11256814Q

Pressure relief valve

Pressure relief valve (200 bar)

Needed when supplied hydraulic pressure exceeds 200 bar.

Low availability

SKU: 60010270

Load hold & press. relief valve Uni-Topg. & Flexi. (200 bar)

Needed when supplied hydraulic pressure exceeds 200 bar. Also combined with load holding function for safety.

In stock

SKU: 60040810
