SC M+ Bucket 230 Bolt on Hooks
In stock
SKU:
11256025Q
The professional snow clearing implement for AG tractors and compact wheel loaders.
Professional snow clearing.
Reinforced and improved flaps for increased productivity.
Available with M16 L BoH system and unique accessories such as snow plough wing.
11256025Q

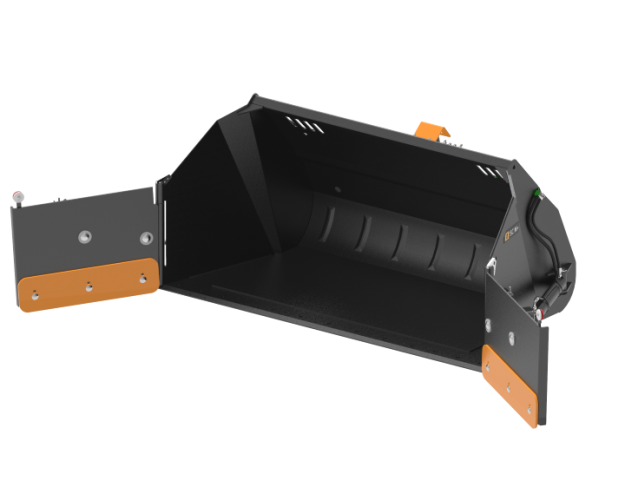

The SC M+ bucket is a new improved version of the popular SC230 special clearing bucket where all the positive features of its predecessor has been kept and further improved. One important update is the movement of the spring-loaded flaps that has been increased considerably, which enables better ice-tearing ability and smoother snow clearing in general. The flaps has also been reinforced and made more durable aswell as they are wider than before to increase productivity and to better match new larger tractors and loaders, the full width of the bucket with flaps folded 90° is now 392cm. To better support snow clearing on public roads reflexes in white and red has been added to the top of the flaps. Another upgrade to the bucket is the addition of the well proven M16 L Bolt on Hook system that allows all common hook types be assembled tight to the bucket back. The buckets control valve is located sligthly of center to the left on the bucket back to avoid any collisions with Z-linkage loaders. As before the bucket can be controlled through 3rd and 4th hydraulic service, if only 3rd service is available on your loader, special electrical kits are available for you to connect and control the bucket disregarding if its a Quicke loader with QCS control system or any other loader. New accessories have been made available for the SC M+ bucket, the most interesting is the new plough wing which is assembled in the place of a standard flap. The plough wing is excellent when clearing large amounts of snow along roads. The long curved sheet of the plough wing and the negative angle of the cutting edge efficiently throws the snow away from the road and prevents it from falling back on the road again. The movement of the spring loaded plow wing (also the new standard flap) has a unique possibility to remain in contact with the ground while plow wing is angled backwards and bucket tilted forwards. This makes the plough wing efficient and easy to use as it smothly follows the roadside.. The plough wing is available for both right and left hand side but can also be combined with a standard flap on one side and plough wing on the other side. A full range of replaceable cutting edges are also available to meet our customers needs and different countries laws. You can choose between standard reversible cutting edge, serrated cutting edge for ice-tearing and finally also plastic cutting edges when you want to be as gentle as possible to the ground, e.g. when clearing snow on paved roads and squares.
Weight | 660 kg |
---|---|
Width | 233 cm |
Depth | 113 cm |
Height | 109 cm |
SizeModel | 230 |
Hydraulic Pressure, max | 200 |
Working depth | 109 cm |
Volume, struck | 1.14 m³ |
Volume, heaped | 1.41 m³ |
Working width | 233 cm |
Cutting Edge Dim (WxT) | 200x20mm |
Cutting Edge Hardness | 500 HB |
Number of Cylinders | 2 |
Width, max | 392 cm |
Start by selecting tool carrier to get the right options:
Bolt on hook for implements with M16 interface.
Euro / 3-point linkage combi hook allows you to mount the implement both on the loader and on the tractors front- or rear linkage.
Note, when used on Quicke loader in combination with some implements - check carefully for collisions prior to use.
Bolt on hook for implements with M16 interface. Telescopic loader AR480 T
Bolted hook for implements with M16 interface. Recommended for buckets and Multibenne, Silograb and Manure Fork M+.
Bolted hook for implements with M16 interface. Extended BoH that works with manual locking pin on hydraulic implements with cylinders on the back.
Bolted hook for implements with M16 interface. Recommended for Buckets and Multibenne M+, Silograb M+ & Manure Fork M+ .
Bolt on hook for implements with M16 interface. Recommended for JCB Loadall 514-40 Telehandler.
Bolted hook for implements with M16 interface.
Recommended for Buckets, gives more crowd angle.
Bolted hook for implements with M16 interface with a forward angled back, e.g. GM+ buckets, Multigrab M+ and Silograb S+.
Bolt on hook for implements with M16 interface.
Recommended for Knikmops model 120-140.
Bolt on hook for implements with M16 interface.
Recommended for Knikmops model 180 - 250.
Bolt on hook for implements with M16 interface.
Recommended for Knikmops model 80-100.
Bolt on hook for implements with M16 interface. Compatible with manual locking rod and has bracket for RFID tag.
Bolted hook for implements with M16 interface.
Recommended for buckets and Multibenne M+, Silograb M+ & Manure Fork M+ for Manitou MLT Telehandlers.
Bolt on hook for implements with M16 interface.
Recommended for Bucket grabs for Manitou MLT telehandlers.
Recommended for buckets and Multibenne M+, Silograb M+ & Manure Fork M+ for Massey Ferguson & Bobcat telehandlers with Manitou tool carrier.
Bolt on hook for implements with M16 interface. Note, Powergrab M+ and Multigrab M+ could have collisions with open grab head when crowded.
Bolt on hook for implements with M16 interface.
May require repositioning of valve to right side on hydraulic implements.
Bolted hook for implements with M16 interface. For wheel loaders with Z-linkage, recommended for model 3070 and 3080. |
Bolted hook for implements with M16 interface. Suitable for JCB 409 Loader. Older Z-link JCB loaders should use Zettelmeyer 602 - Standard.
Bolted cutting edge in plastic to prevent damage on i.e. paved roads.
Electrical 4th service for other material handlers.
Includes solenoid valve.
With electrical kit; choose hydraulic kit with 2 attaching hoses.
Electrical 4th service kit for Quicke loaders using LCS or older control system.
Includes solenoid valve.
Electrical 4th service kit for QCS (Quicke Control System) if no 4th service handle is installed.
Electrical 4th service kit for QCS (Quicke Control System) if 4th service handle already is installed.
3rd function Selectofix for implements. Does not include hoses.
Hose kit with 4 hoses. 1/2" hoses L 125cm. Coupling towards implement: 1/2" BSPP, Coupling towards loader: 1/2" ISO A Quick Coupling Female.
Hose kit with 2 hoses. 1/2" hoses L 125cm. Coupling towards implement: 3/8" BSPP, Coupling towards loader: 1/2" ISO A Quick Coupling Female.
OUTLET
The plow wing is excellent when clearing large amounts of snow along roads. The long curved sheet of the plow wing and the negative angle of the cutting edge efficiently throws the snow away from the road and prevents it from falling back on the road again. The movement of the spring loaded plow wing (also the new standard flap) has a unique possibility to remain in contact with the ground while plow wing is angled backwards and bucket tilted forwards. This makes the plow wing efficient and easy to use as it smothly follows the roadside. The plow wing is available for both right and left hand side but can also be combined with a standard flap on one side and plow wing on the other side.
OUTLET
The plow wing is excellent when clearing large amounts of snow along roads. The long curved sheet of the plow wing and the negative angle of the cutting edge efficiently throws the snow away from the road and prevents it from falling back on the road again. The movement of the spring loaded plow wing (also the new standard flap) has a unique possibility to remain in contact with the ground while plow wing is angled backwards and bucket tilted forwards. This makes the plow wing efficient and easy to use as it smothly follows the roadside. The plow wing is available for both right and left hand side but can also be combined with a standard flap on one side and plow wing on the other side.
