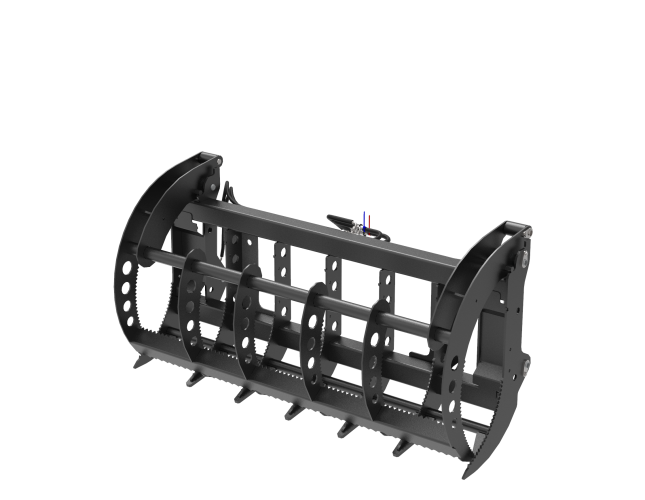

Rake Grapple CL 72” / 180
The Rake grapple is perfect for a wide range of applications, including land clearing, piling brush, landscaping and material sorting.
Perfect for clearing the land from roots and brush while sifting out the dirt.
Grapple head has serrated edge along full width for better grip and raking loose material backwards.
Robust design and hardened tines grants long service life.
SKU
11256612F
Our Rake grapple is perfect for a wide range of applications, including land clearing, piling brush, landscaping and material sorting.
The CS models are specifically engineered for sub-compact tractors and combines a lightweight design with heavy-duty performance. The CM model is designed for mid-sized compact tractors while the CL model is purpose built for large compact/Utility tractors and offers maximum durability and longevity .
The hardened tines are serrated for superior grasping capabilities and the spacing allows for efficient sifting of unwanted soil from grabbed material.
Rake grapple C is recommended for farmers, homesteaders, acreage owners aswell as landscapers.
| Weight | 493.84 lbs |
|---|---|
| Width | 71.26" |
| Depth | 23.62" |
| Height | 34.25" |
| SizeModel | 72" |
| Hydraulic Pressure, max | 175 |
| Working width | 181 cm |
| Height, max | 129 m³ |
| Opening, max | 116 cm |
| Number of Cylinders | 2 |
| Width, max | 181 cm |
| Number of Tines, max | 9 |
